Compare Models

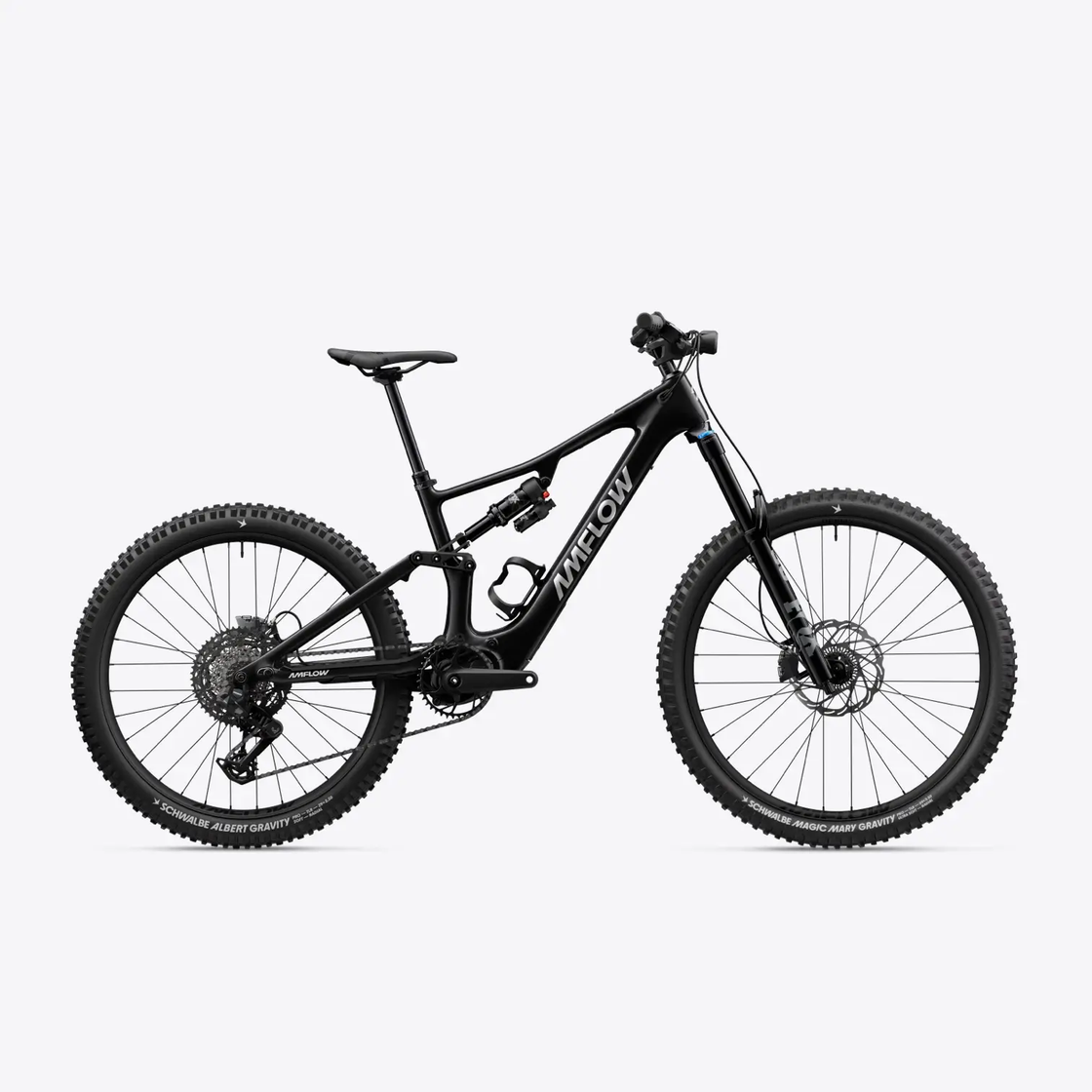

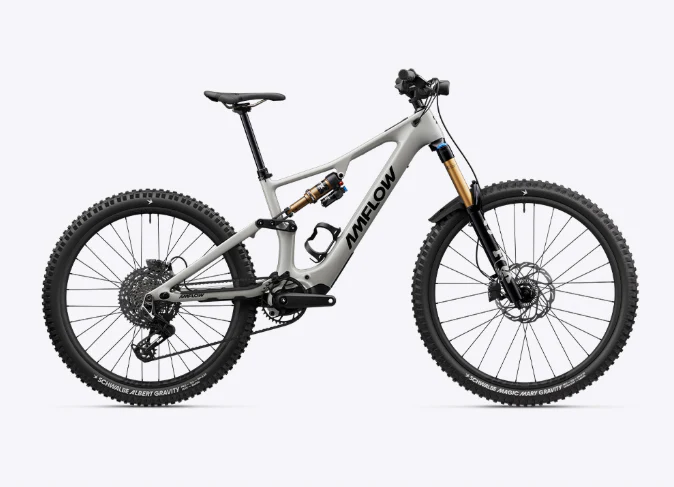

Amflow PX Carbon
Amflow PX Carbon Pro
Amflow PX Carbon
Amflow PX Carbon Pro
Frame
Amflow PX Carbon Frame
Amflow PX Carbon Pro Frame
Phantom Black
Moonstone Gray
40 adjustable geometry configurations *
40 adjustable geometry configurations *
Compatible with 27.5″ and 29″ rear wheels
Compatible with 27.5″ and 29″ rear wheels
* The bike offers 5 headset angle settings, 2 bottom bracket height settings, and 4 chainstay length settings. Users can combine these settings based on different riding styles and terrain conditions. Theoretically, these parameters can form up to 40 geometry configurations. The specific adjustable range and applicable effects are subject to actual usage.
* The bike offers 5 headset angle settings, 2 bottom bracket height settings, and 4 chainstay length settings. Users can combine these settings based on different riding styles and terrain conditions. Theoretically, these parameters can form up to 40 geometry configurations. The specific adjustable range and applicable effects are subject to actual usage.
E-Bike System
Avinox M2S Drive Unit: Nominal 130N·m, Peak 150N·m
Avinox M2S Drive Unit: Nominal 130N·m, Peak 150N·m
Avinox Screen: 2-inch OLED Control Display
Avinox Screen: 2-inch OLED Control Display
Avinox Integrated Battery: 700Wh
Avinox Integrated Battery: 700Wh
Avinox Wireless Controllers: Right and left sides
Avinox Wireless Controllers: Right and left sides
Avinox Fast Charger: 12A/508W
Avinox Fast Charger: 12A/508W
Rear shock
FOX Float X Performance (MY 2027)
FOX Float X Factory (MY 2027)
2-position lever, custom tune, LSR adjustment, 210×55mm, air shock
2-position lever, custom tune, LSC & LSR adjustment, 210×55mm, air shock
Fork
FOX 36 Performance (MY 2027)
FOX 36 Factory (MY 2027)
160mm travel, GRIP damper, Sweep/LSR adjustment, 15×110mm, 44mm offset
160mm travel, GRIP X2 damper, HSC/LSC/HSR/LSR adjustment, 15×110mm, 44mm offset
Drivetrain
Rear Derailleur: SRAM S1000 Eagle Transmission Derailleur
Rear Derailleur: SRAM X0 Eagle Transmission Derailleur
Chainring: SRAM Eagle Transmission DM Chainring 38T for Avinox
Chainring: SRAM Eagle Transmission DM Chainring 38T for Avinox
Shift Levers: SRAM AXS Pod Controller
Shift Levers: SRAM AXS Pod Rocker Controller
Cassette: SRAM XS-1270 Eagle Transmission Cassette 10-52T
Cassette: SRAM XS-1295 Eagle Transmission Cassette 10-52T
Chain: SRAM Eagle 70 Transmission Flattop Chain
Chain: SRAM X0 Eagle Transmission Chain
Power Supply: Avinox M2 Series Electronic Rear Derailleur Power Cable (SRAM AXS Extension Cord)
Power Supply: Avinox M2 Series Electronic Rear Derailleur Power Cable (SRAM AXS Extension Cord)
Crankset: Avinox SL Crank (M/L: 155mm; XL/XXL: 160mm)
Crankset: Avinox SL Crank (M/L: 155mm; XL/XXL: 160mm)
Brakes
Magura Gustav Pro Hydraulic Disc Brake, 4-piston calipers
Magura Gustav Pro Hydraulic Disc Brake, 4-piston calipers
Magura Sensor Rotor (203mm, 2.5mm)
Magura Sensor Rotor (203mm, 2.5mm)
Wheels
Amflow XMA-30 Mullet Version
Amflow XMC-30 Mullet Version
Front Rim: Alloy, 29″, 30mm inner width, 32H, tubeless ready
Front Rim: Carbon, 29″, 30mm inner width, 28H, tubeless ready
Rear Rim: Alloy, 27.5″, 30mm inner width, 32H, tubeless ready
Rear Rim: Carbon, 27.5″, 30mm inner width, 32H, tubeless ready
Spokes: SAPIM E-Light
Spokes: SAPIM E-Light
Front Hub: Alloy, 2 sealed bearings, 15×110mm thru-axle, 32H, 6-bolt
Front Hub: Alloy, 2 sealed bearings, 15×110mm thru-axle, 28H, J-bend, 6-bolt
Rear Hub: Alloy, 4 sealed bearings, 12×148mm thru-axle, 32H, 6-bolt, 4 pawls 36T, HG
Rear Hub: Alloy, 4 sealed bearings, 12×148mm thru-axle, 32H, J-bend, 6-bolt, 6 pawls 60T, XD
Tires
Front: Schwalbe Magic Mary Radial, 29×2.5, Gravity Pro, Ultra Soft, tubeless ready
Front: Schwalbe Magic Mary Radial, 29×2.5, Gravity Pro, Ultra Soft, tubeless ready
Rear: Schwalbe Albert, Radial, 27.5×2.5, Gravity Pro, Addix Soft, tubeless ready
Rear: Schwalbe Albert, Radial, 27.5×2.5, Gravity Pro, Addix Soft, tubeless ready
Handlebar
Amflow Enduro Alloy Handlebar
Amflow Enduro Carbon Handlebar
40mm Rise, 800mm Width, 35mm Diameter
40mm Rise, 800mm Width, 35mm Diameter
5-degree upsweep, 9-degree backsweep
5-degree upsweep, 9-degree backsweep
Grips
Amflow Enduro Grip 2 Lock-on Grips
Amflow Enduro Grip 2 Lock-on Grips
Stem
Amflow Mountain Bike Split Stem
Amflow Mountain Bike Split Stem
Length: 35mm
Length: 35mm
Clamping Diameter: 35mm
Clamping Diameter: 35mm
Saddle
Amflow Mountain Saddle
Amflow Mountain Saddle Titanium
Dropper Post
Amflow Dropper Post Shim (adjustable travel: 0/5/10/15/20/25mm)
Amflow Dropper Post Shim (adjustable travel: 0/5/10/15/20/25mm)
M/L Frame: 190mm
M/L Frame: 190mm
XL Frame: 210mm
XL Frame: 210mm
XXL Frame: 230mm
XXL Frame: 230mm
Accessories
Avinox Front Light
Avinox Front Light
Amflow Bottle Cage
Amflow Bottle Cage
Three Geometry Adjustment Systems (0.5°/1° Headset Cups, Chainstay Flip-Chip)
IoT Nano SIM Card
5/10mm Dropper Post Travel Reducing Spacer
Three Geometry Adjustment Systems (0.5°/1° Headset Cups, Chainstay Flip-Chip)
Rear Light
Schwalbe Clik Valve Conversion Set
Torque Wrench
FOX 36 Mud Guard (Short)
Clear Frame Protection Film
5/10mm Dropper Post Travel Reducing Spacer
Shock Pump
Rear Light
Quick Start Guide
Torque Wrench
Clear Frame Protection Film
Shock Pump
Quick Start Guide
