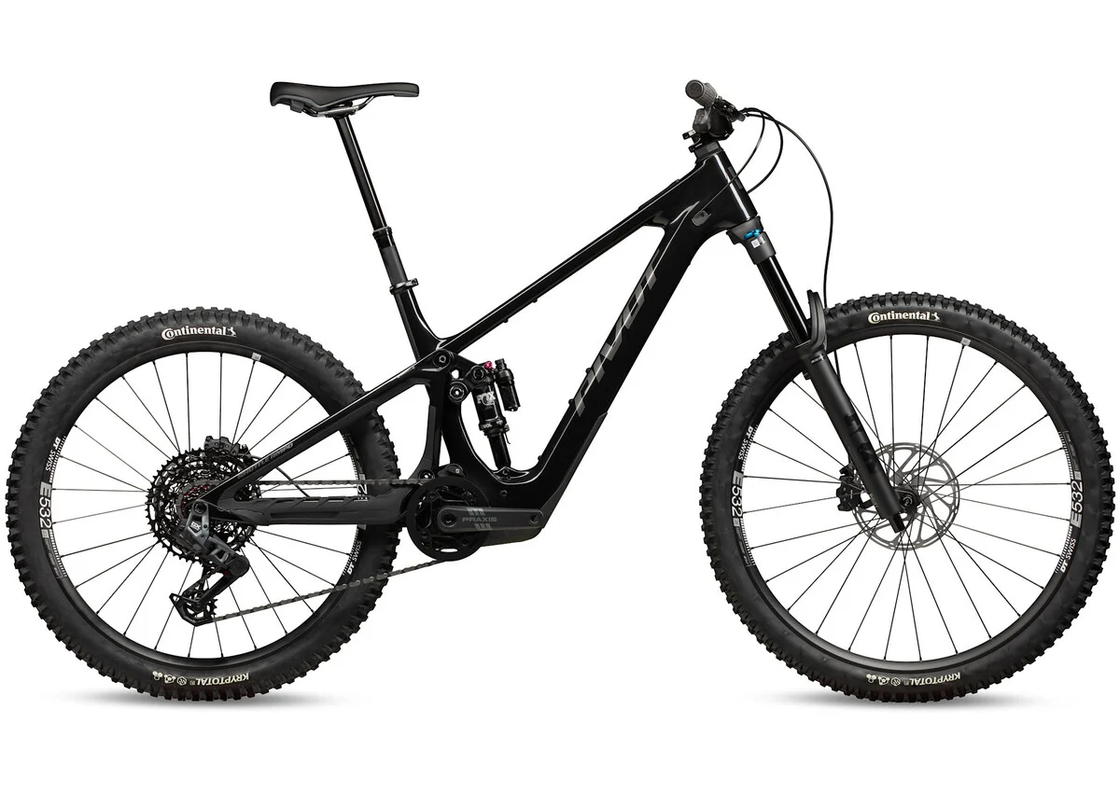

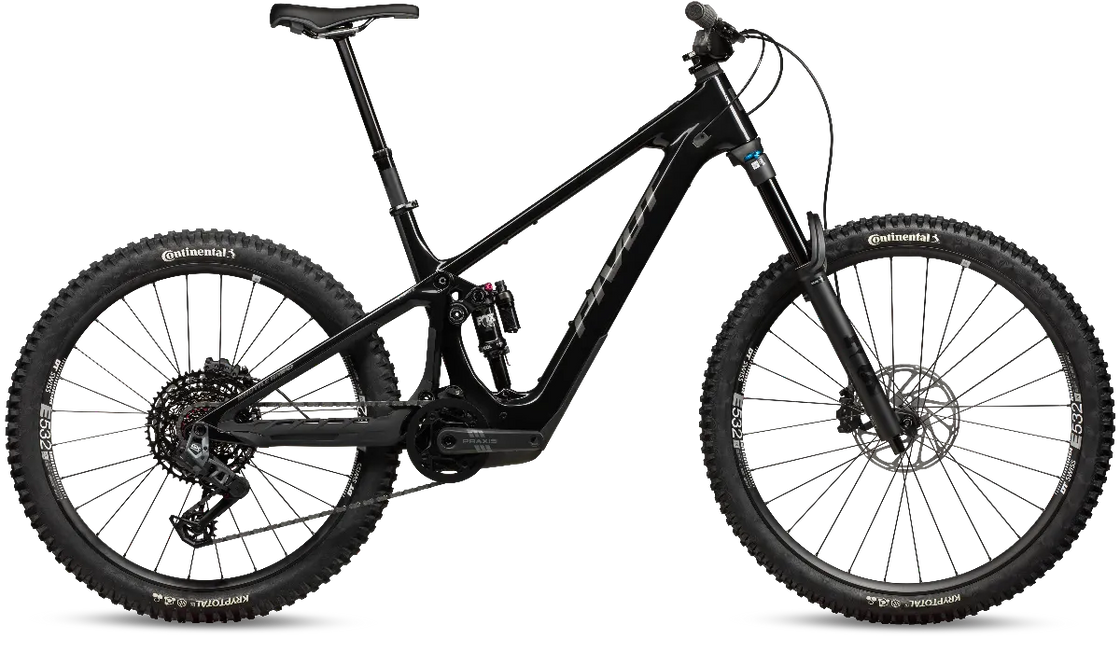

Pivot Shuttle AMP’d Ride – GX Eagle Transmission

The Shuttle AMP’d is Pivot’s first e-MTB built around the DJI Avinox M2S drive unit. It delivers up to 150Nm of torque and 1300W of peak power from a compact 2.6kg motor, with an 800Wh battery in a surprisingly slim carbon down tube. Add Pivot’s dw-link suspension, 150mm of rear travel, a 160mm Fox 38 and mixed wheels, and you get an all-mountain e-bike that climbs like nothing else and stays composed on the way down.

The Ride build is the entry point to the AMP’d range. It shares the same carbon frame, motor and battery as the Pro and Team builds, paired with SRAM GX Eagle Transmission, SRAM Maven brakes and Fox Performance suspension.

Key Features

• Avinox M2S motor: 130Nm continuous, 150Nm in Boost mode (60 seconds), 1300W peak
• 800Wh integrated battery on every size
• Top tube OLED touchscreen display with wireless left and right remotes
• SRAM Transmission hardwired to the main battery, so there’s no derailleur battery to charge
• SmoothShift: smoother gear changes under power, and shifting while coasting
• Full carbon frame with dw-link suspension, 150mm rear and 160mm front travel
• Mixed wheels (29" front, 27.5" rear), with full 29" possible on SM to XL via the flip chip
• Ride modes: Auto, Eco, Trail, Turbo, Boost, all tunable in the Avinox app
• USB-C port for charging your phone, GPS or camera
• Ready for an integrated front light
• Compatible with the Pivot Tool Dock, with full internal cable routing
• Water bottle mount on all sizes

Specifications

Frame & Suspension

• Frame: Shuttle AMP’d full carbon, dw-link, 150mm travel, flip chip
• Fork: Fox Float 38 Performance, GRIP damper, 160mm, 44mm offset

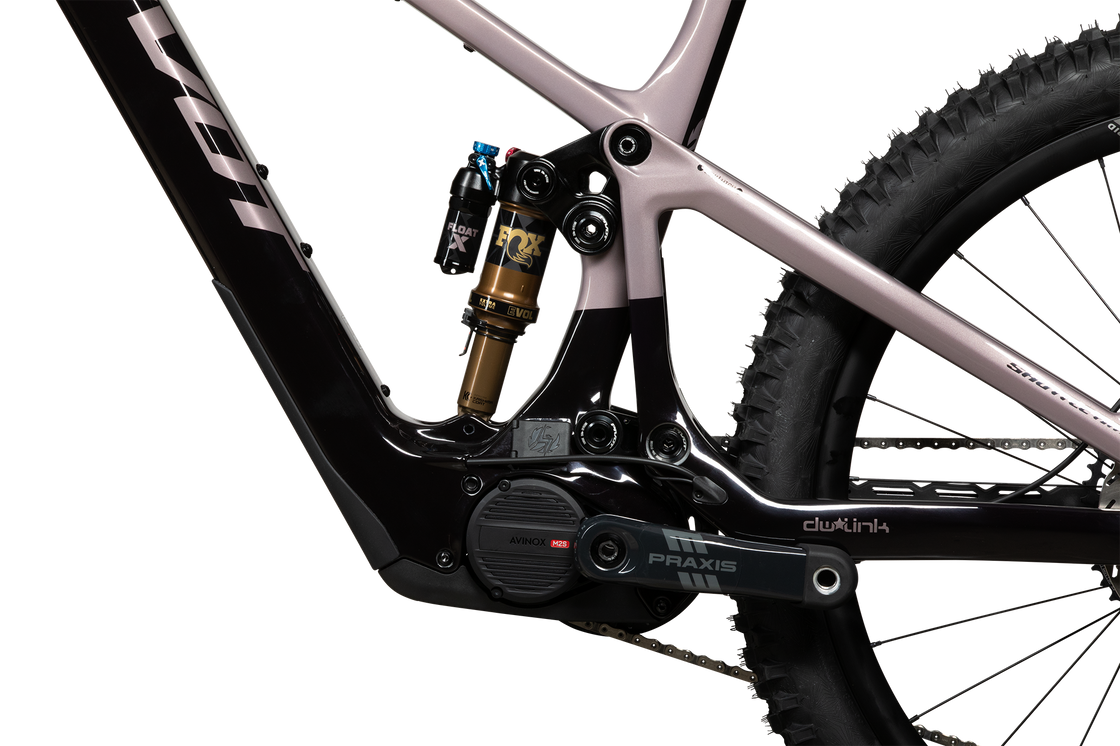

• Shock: Fox Float X Performance, 185 x 55mm trunnion
• Headset: Pivot Precision Sealed Cartridge

E-System

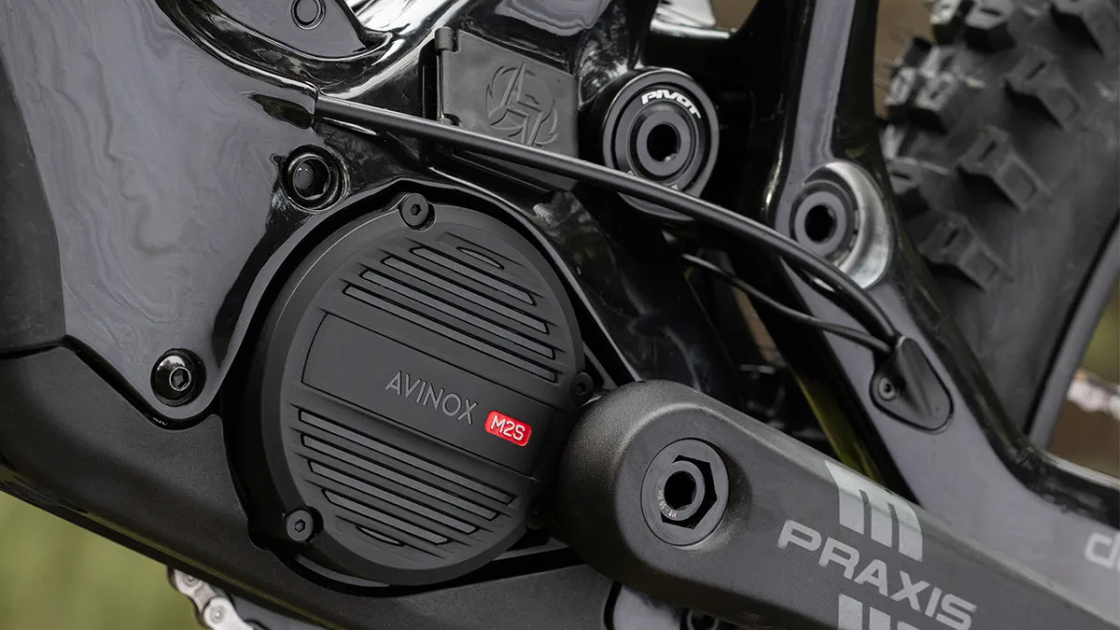

• Motor: Avinox M2S, 130Nm (150Nm Boost), 1300W peak
• Battery: Avinox 800Wh, integrated
• Display: Avinox OLED Control Display, top tube integrated
• Remotes: Avinox wireless, left and right
• Charger: Avinox 168W
• Assisted speed: up to 32km/h

Drivetrain

• Rear derailleur: SRAM GX Eagle Transmission AXS, 12-speed
• Shifter: SRAM AXS Pod Controller
• Cassette: SRAM XS-1270, 10–52t
• Chain: SRAM Eagle 70 Flattop, 12-speed
• Cranks: Praxis Alloy eCranks, 155mm, 34t

Brakes

• Brakes: SRAM Maven 4-piston
• Rotors: 200mm front and rear

Wheels & Tyres

• Wheelset: DT Swiss E532, 30mm internal, 29" front and 27.5" rear
• Front tyre: Continental Kryptotal-F, 29 x 2.4", Enduro casing, Super Soft
• Rear tyre: Continental Kryptotal-R, 27.5 x 2.6", Enduro casing, Soft
• Rear spacing: 12 x 157mm SuperBoost

Cockpit

• Handlebar: Phoenix Race Aluminium
• Stem: Phoenix Team Enduro V2, 32mm (XS), 40mm (SM–LG), 50mm (XL)
• Grips: Phoenix Factory Lock-On
• Seatpost: OneUp Dropper V3, 150mm (XS–SM), 180mm (MD), 210mm (LG), 240mm (XL)
• Saddle: Pivot Team E-Bike

General

• Sizes: XS, SM, MD, LG, XL
• Colours: Burgundy Berry Freeze, Black Metallic Stone
• Max tyre size: 29 x 2.5" or 27.5 x 2.6"
• Max system weight: 149kg (rider plus gear)
• Warranty: lifetime frame, 1 year paint and finish

Specifications are supplied by the manufacturer and may change without notice.
